Project Info:

Location: King County, Washington

Role: Lead Designer

Owner: Washington State Department of Transportation

Client: Eastside Corridor Constructors

Construction Cost: $365,000,000

Services:

  • Design-Build Delivery
  • Design Management
  • Accelerated Schedule
  • Interchange Design
  • Interstate Design
  • Highway/Roadway Design
  • High Occupancy Vehicle (HOV) Facility Planning/Design
  • Intersection Analysis/Design
  • Hydraulic Analysis/Design
  • Structural Design
  • Substructure Design
  • Prestressed Concrete Girder Bridge Design
  • Bridge Replacement
  • Pile Design
  • Detention/Retention Basin Design
  • Stormwater/Pavement Drainage Design
  • Noise Wall Design
  • Retaining Wall Design
  • Signal Design
  • Maintenance-of-Traffic (MOT) Plan Development
  • Pedestrian Crossing Design (Grade Separated)
  • Transit Planning/Design
  • Bike/Ped Facility Planning/Design
  • Construction Support Services
  • Fish Passage Design
  • Traffic/Transportation Analysis
  • Transit Station Planning/Design
  • Utility Coordination
  • Roundabout Intersection Design
  • Intelligent Transportation System Planning/Design
  • State/Federal Funding Procedure Compliance

Recognitions:

2012 King County Industrial Waste Program (KCIW) Gold Award

2015 Top 10 Roads – Roads and Bridges Magazine

2016 WASHTO Quality of Life / Community Development Award

2016 AASHTO America’s Transportation Awards Top 12 Finalist

2016 Associated General Contractors of America Alliant Build America Merit Award

2018 American Council of Engineering Companies Washington Silver Award

pro-000004554_wsdotsr520eastsidedb_01
pro-000004554_wsdotsr520eastsidedb_02
pro-000004554_wsdotsr520eastsidedb_03
pro-000004554_wsdotsr520eastsidedb_05a
pro-000004554_wsdotsr520eastsidedb_04a
pro-000004554_wsdotsr520eastsidedb_06a

Lead designer for $365 million, 2.5-mile, 100,000 AADT urban highway improvement project to provide needed congestion relief through an integrated, multimodal operational system, as well as reconstruction of a complex urban corridor. SR 520 is a busy regional corridor that connects several communities, including Bellevue, Kirkland, and Redmond, to downtown Seattle.

Project elements include transit and high-occupancy vehicle (HOV)/managed lane improvements, four interchanges, two in-line transit stations, and three urban lids, totaling approximately 300,000 square feet. The project’s unique lidded overpasses provide overcrossing connectivity, as well as unique community amenities such as open space gathering areas, ADA-accessible pedestrian and bicycle facilities, and transit-user transfer facilities.

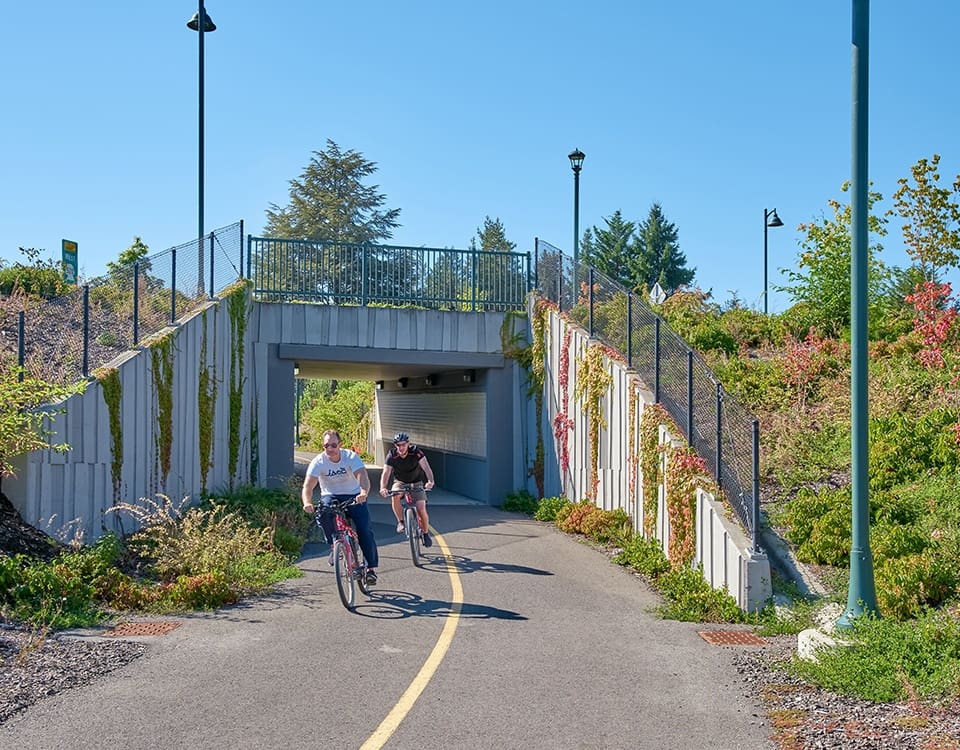

Aiding the project’s emphasis on connectivity, the design included three pedestrian bridges with lengths up to 78 feet, three pedestrian tunnels with lengths up to 280 feet, and a bike/pedestrian regional trail parallel to the highway. The project team also minimized environmental impacts to existing wetlands, improved fish passage, and restored habitat as part of the project’s environmental stewardship goals.

A multiphase traffic control plan was developed to maintain existing traffic during peak hours and transit station and interchange ramp access throughout. Design of the west end of the project was coordinated to operate with the connection to the existing floating bridge, as well as to connect with the new floating bridge.
