Project Info:

Location: Sammamish, Washington

Role: Prime

Owner: City of Sammamish

Client: City of Sammamish

Construction Cost: $24,000,000

Services:

  • Highway/Roadway Design
  • Intersection Analysis/Design
  • Roundabout Intersection Design
  • Bike/Ped Facility Planning/Design
  • Culvert Design
  • Lighting Design
  • Landscape Architecture
  • Final Plans, Specifications, and Estimates (PS&E)
  • Alternatives Development and Analysis
  • Right of Way Acquisition

211209-02E
211209-09E
211209-27E
211209-30E
211209-32E

West of 242nd Avenue, Issaquah‐Fall City Road was a four‐lane facility with two travel lanes in each direction and a center turn lane. The road east of 242nd Avenue, however, narrowed to three lanes, which frequently caused traffic backups. To reduce congestion and address level of service issues, the City of Sammamish initiated a project to widen Issaquah‐Fall City Road from 242nd Avenue to Klahanie Drive. Lochner is responsible for the project design.

Tying into the roadway west of the project, Lochner’s design plans widened Issaquah‐Fall City Road to include four travel lanes (two in each direction), a raised median, and roundabouts at each major intersection. It also accommodated multimodal access with bike lanes on either side of the road and added either curb, gutter, and sidewalk or a meandering path.

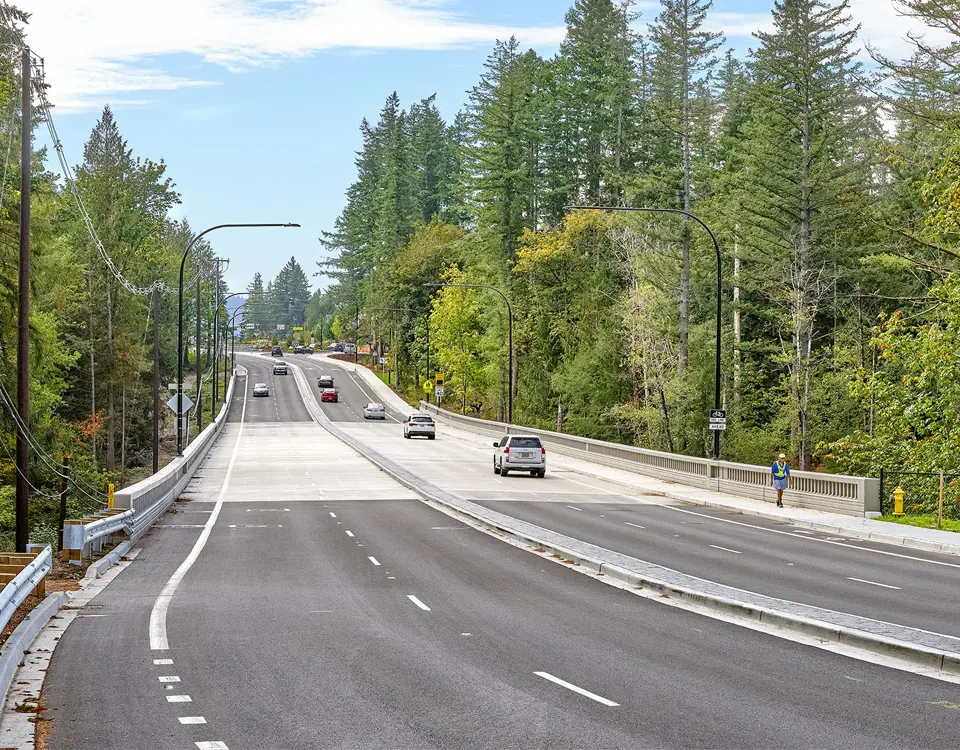

For approximately 900 feet, Issaquah‐Fall City Road had a sag curve vertical alignment running through a stream and wetland area, which was accommodated with a large‐diameter culvert. Lochner’s design replaced the culvert with a three‐span bridge and raised the roadway by approximately 15 to 20 feet in this section, eliminating the sag curve, improving the view of the corridor for drivers, and increasing safety.

Additional aspects of the project include LED lighting, landscape architecture, and the oversight of right of way acquisition.
